LUMAGROW

Supplemental Spectrum

Supplemental Spectrum Grow Light Series – 30W / 60W / 100W

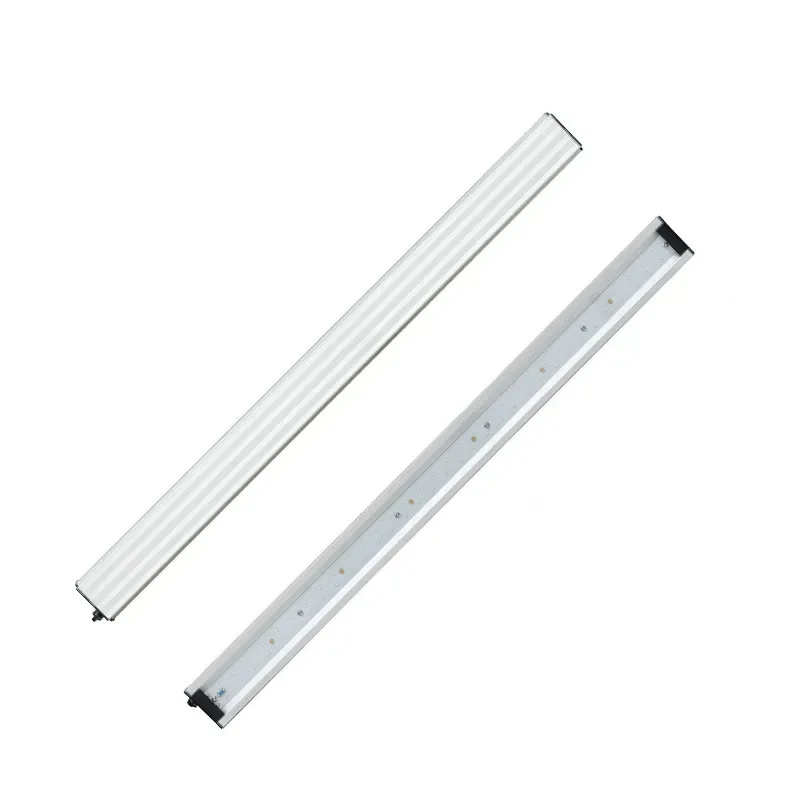

A 30W UV bar emitting UV-A and UV-B, 50 × 4.6 × 2.7 cm and 0.5 kg, with 71 Sanan diodes in a 6063 aluminium body. It is IP65, connects by plug rather than by dimmer, and is supplied as a 30W single bar, a 60W two-bar set or a 100W build.

Get a QuoteRequest a SampleContact Sales

Overview

Key Features

  • Dedicated UV-A and UV-B emission
  • 71 Sanan diodes, 0.5 m bar, 0.5 kg
  • 30W single bar, 60W two-bar set, 100W build
  • IP65, plug-in connection, no dimming
  • Read as a UV supplement, not a main light
ModelZH-30W
Power30W/60W/100W
Input Voltage220V
SpectrumUVA + UVB
LED ChipsSanan Optoelectronics
Dimensions50 × 4.6 × 2.7cm

Product Overview

Supplemental Spectrum Grow Light Series – 30W / 60W / 100W

This is a dedicated UV fixture, not a general grow light. It emits UV-A and UV-B from 71 Sanan diodes over a 0.5 m bar, and is meant to run alongside a main lighting installation rather than to replace any part of it. The supplier lists a 30W single bar, a 60W two-bar set and a 100W build.

The body is 6063 aluminium at 0.5 kg, 50 cm long, IP65 rated, with a plug-in connection instead of a dimmer — so it is switched, not dimmed, and scheduling happens at the circuit rather than on the fixture. Power factor is 0.6 and the temperature rise is 30 K.

UV output is specified as radiant flux rather than in lumens, so dose planning uses mW or W per band, and the radiant-flux figures are supplied per band with the order. Because UV-A and UV-B are involved, installation should include shielding, eye protection and a clear operating procedure for staff working under the fixture. Certification is CE-EMC.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

ModelZH-30W
Power30W/60W/100W
Input Voltage220V
SpectrumUVA + UVB
LED ChipsSanan Optoelectronics
Dimensions50 × 4.6 × 2.7cm
Net Weight0.5 kg
IP RatingIP65
CertificationsCE-emc
Brandboya
OriginZhongshan
Housing Material6063 aluminum
Power Factor0.6
LED Chip Count71
Control Methodplug-in
Temperature Rise30 K
ColorUVA+UVB
ApplicationFor Greenhouses | Grow Racks | Plant Tents

Available Variants

ModelPowerDimensionsConfiguration
ZH-30W30W50 × 4.6 × 2.7cmUV light bar, 1 bar, 0.5 m
60W60W
100W100Wpng tile label '100W | 0.5 m'

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

220V

Spectrum

UVA + UVB

LED Chips

Sanan Optoelectronics

Applications

Where It Is Used

  • Supplemental UV programmes alongside main lighting
  • Morphology and quality trials
  • Research benches running band-specific studies

OEM & ODM

Build Your Private-Label Grow Light

Supplemental Spectrum Grow Light Series – 30W / 60W / 100W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning
Custom housing & finish
Private-label packaging
Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What wavelengths does this 30W fixture actually emit?
UV-A and UV-B. It is a dedicated UV supplemental source, not a general grow light - there are no white, red or far-red channels on this build, and it is meant to be layered onto a base lighting system rather than used alone.
What is a UV-B supplemental light used for?
Research and production programs that want a controlled UV stress dose, typically in the final weeks before harvest, where UV exposure is used to trigger secondary metabolite production. Because it is a stress treatment rather than a growth input, dose and timing matter more than raw output.
Horticultural research lighting
Where is it normally installed?
As a targeted supplemental fixture in research chambers, greenhouse compartments and controlled cultivation rooms, hung separately from the main lighting so its schedule can be independent. Our /industries/horticultural-research page covers the research setups these are usually ordered for.
What are the physical dimensions?
50 x 4.6 x 2.7 cm at 0.5 kg, IP65. The compact bar format is deliberate: it can be mounted inside a growth chamber or between rows without occupying a lighting position.
What voltage does it need?
220V. It is a single-voltage build, so it suits European and Asian installations and requires a step-up arrangement on a 120V North American circuit.
Is there a dimming or control option?
No. This is a fixed-output fixture with no dimming input on the build, so dose is controlled by run time rather than intensity. For research work that is usually the preferred approach anyway, because the on/off schedule is easier to document than a dimmed percentage.
What safety precautions apply to a UV-B fixture?
Treat it as a UV source: do not look at the array while it is running, keep it on a timer rather than leaving it on, and screen the area during operation. The IP65 housing protects the fixture, not the people working under it.
