Product Category
Intercanopy & Under Canopy Grow Lights
Supplemental LED grow lighting designed for installation between or below plant canopies to improve light distribution and lower-canopy development.
Category Introduction
About Intercanopy & Under Canopy Grow Lights
Top lighting alone cannot reach the middle and lower zones of tall crops. Intercanopy and under canopy grow lights deliver photons directly into those zones — improving flower development, consistency and total yield per square meter without increasing ceiling fixture count or HVAC load.
This category combines two mounting positions in one line: intercanopy lights installed between canopy layers on short drops, and under canopy lights mounted close to the crop base to illuminate the lowest leaves and flowers. Within the line, products are tagged as intercanopy or under canopy by mounting position and beam optics.
Fixtures use narrow-beam and low-glare optics to concentrate light into the productive zone, with sealed housings rated for the humidity and splash exposure found close to the growing medium.
Product Listing
Products in This Category
Real models with verified technical data sheets. Open any product for full specifications, spectrum and packaging.
150W Intercanopy & Under Canopy Grow Light
150W three-sided intercanopy bar, 1156 mm, 18,000 lm, IP65, rope or bracket mount.
View Details

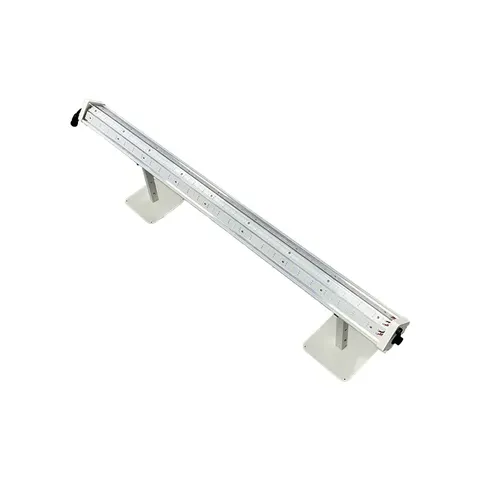

Intercanopy & Under Canopy Grow Light Series – 120W / 150W (AD3T-UC120)
120W / 150W under-canopy bar, 1142 mm, 8547 lm, 336 diodes, IP65, lifting bracket.
View Details

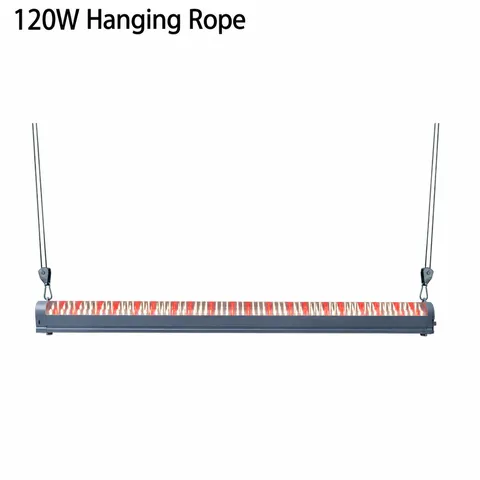

Intercanopy & Under Canopy Grow Light Series – 120W / 150W / 240W
120W / 150W / 240W under-canopy bar, 1200 mm, 480 diodes, IP65, tripod or lifting frame.
View Details

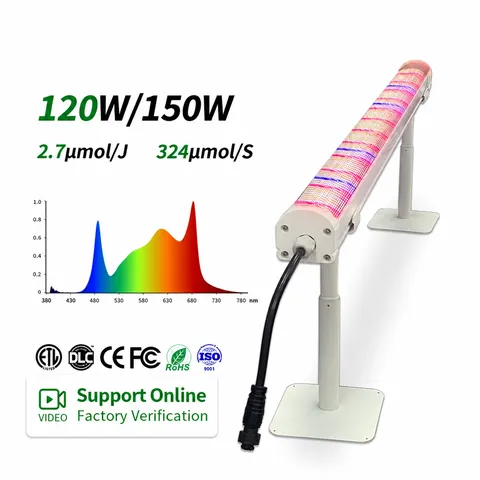

Intercanopy & Under Canopy Grow Light Series – 120W / 150W (Five-Wavelength)
120W / 150W intercanopy bar, 1200 mm, 19,800 lm, 140 lm/W, five wavelengths, IP65.
View DetailsKey Features
Why This Category
- One category covering intercanopy and under canopy mounting
- Narrow-beam optics targeted into the canopy zone
- Raises lower-canopy PPFD and flower quality
- Low heat load compared with equivalent top lighting
- Sealed housings for high-humidity zones
- Daisy-chain connection and simple row mounting
Applications
Where It Is Used
- Cannabis flowering and finishing rooms
- Tomato, pepper and tall-crop greenhouse production
- Tall-crop indoor cultivation
- Supplemental lighting retrofits
Technical Options
Specification Range
Options available across this category. Channel count, spectrum, power and dimming are product attributes confirmed per model.
| Power Range | 40W – 200W per fixture |
|---|---|
| Mounting | Intercanopy (between canopy) / Under canopy (crop base) |
| Spectrum | Full spectrum; deep red enhanced optional |
| PPF | Up to 620 µmol/s per fixture |
| Beam Angle | 60° × 120° (intercanopy) / 110° (under canopy) |
| Dimming | 0–10V |
| IP Rating | IP65 |
| Warranty | 5 years |
Customization & OEM Options
Spectrum, wattage, driver, housing, logo, packaging and control system can all be customized for private-label programs. Minimum order quantities depend on the level of customization — contact our team with your requirements.
Related Industries
Where Customers Use This Lighting
Products are what we sell — industries are where our customers use them. Explore the application pages below.
FAQ
Intercanopy & Under Canopy Grow Lights — FAQ
Common questions about this product category.
What is the difference between intercanopy and under canopy lighting?
Can these lights run on the same controller as my top lights?
Related Categories
Explore Other Categories
Get a Grow Light Solution for Intercanopy & Under Canopy Grow Lights
Send us your growing area, crop type and target PPFD. Our team will recommend the right configuration and quotation within one business day.
