Intercanopy & Under Canopy Grow Light Series – 120W / 150W / 240W

A 1200 mm under-canopy bar offered at 120W, 150W and 240W, with 480 diodes and a chip choice of Samsung, Seoul, Sanan or Osram. It is IP65, accepts 120–277 V, and is supplied for tripod or lifting-frame mounting so the bar can stand in the row rather than hang from above.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Tripod or lifting-frame mounting — stands in the row
480 diodes with a Samsung / Seoul / Sanan / Osram choice
120–277 V input for North American and European supplies
IP65 aluminium housing, 7.5 kg, 1200 mm
Bar length published; frame size from the mounting kit

Model	ZWSGD-120/150N
Power	120W/150W/240W
Input Voltage	120-277V
PPE	3.0 µmol/J
Spectrum	full spectrum
LED Chips	Samsung / Seoul / Sanan / Osram optional, 480 pcs

Product Overview

Intercanopy & Under Canopy Grow Light Series – 120W / 150W / 240W

The mounting approach is what distinguishes this bar: it is supplied for a tripod stand or a lifting frame, so it stands on the floor between rows instead of hanging from the structure. In retrofit greenhouses where overhead points are already occupied, that removes a scheduling problem.

Diodes are offered as a choice of Samsung, Seoul, Sanan or Osram, 480 in total on a 1200 mm body, and output is 3000 lm. Input range is 120–277 V, wider than the 220 V bars in the same category, which makes it usable on North American supplies without a driver change. Housing is aluminium, IP65, at 7.5 kg.

Published dimensions cover the bar length; stand and frame sizes come from the mounting kit. The fixture ships without a declared dimming method, so rooms that need scheduled dimming specify the driver option with the order. Certification is CE.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	ZWSGD-120/150N
Power	120W/150W/240W
Input Voltage	120-277V
PPE	3.0 µmol/J
Spectrum	full spectrum
LED Chips	Samsung / Seoul / Sanan / Osram optional, 480 pcs
Dimensions	1200 mm
Net Weight	7.5 kg
IP Rating	IP65
Mounting Height	Tested at Height 12" (30cm), 18" (45cm), 24" (60cm)
PPFD	120W map: peak 631 µmol/m²/s at 12" (30cm)
Certifications	CE (EU)
Coverage	2x2 FT grow tent (PPFD test)
Luminous Flux	3000 lm
Power Factor	0.95
Housing Material	aluminium alloy
Beam Angle	240°/255° ultra-wide beam angle
LED Chip Count	480
Brand	boya
Origin	China

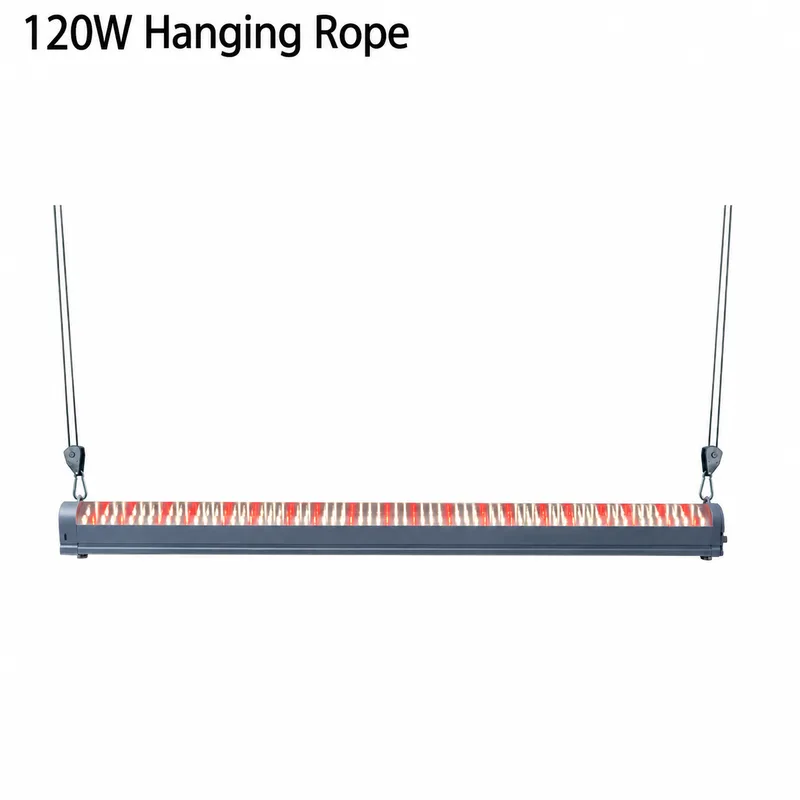

Installation	lifting bracket/ tripod stand / hanging rope

Available Variants

Model	Power	PPE	Dimensions	Mounting
ZWSGD-120/150N	120W	3.0 µmol/J	1.2 m (1200 mm)	lifting-frame/ (tripod stand) / hanging rope
ZWSGD-120/150N	150W
240W	240W

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

120-277V

PPE

3.0 µmol/J

Spectrum

full spectrum

LED Chips

Samsung / Seoul / Sanan / Osram optional, 480 pcs

PPFD

120W map: peak 631 µmol/m²/s at 12" (30cm)

Applications

Where It Is Used

Retrofit greenhouses with no free overhead points
Rows that need light from floor level
Dual-voltage distribution across regions

OEM & ODM

Build Your Private-Label Grow Light

Intercanopy & Under Canopy Grow Light Series – 120W / 150W / 240W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What is the measured PPFD at canopy level?

The 120W map peaks at 631 µmol/m²/s at 12in (30cm) from the plants, tested in a 2x2 ft area. That is a canopy-level measurement rather than a fixture-output figure, which is the number that actually tells you whether lower leaves are getting useful light.

Cannabis cultivation lighting

Which mounting heights were tested?

12in (30cm), 18in (45cm) and 24in (60cm). Those are the three distances in the PPFD work, so they are the sensible starting points in a real canopy - start at 12in for dense lower growth and move up if leaves show stress.

What is the efficacy and what diode options exist?

3.0 µmol/J, with 480 diodes that can be Samsung, Seoul, Sanan or Osram depending on the build you order. The diode brand is an order-time choice, not a fixed specification, so state a preference if your customer has one.

The housing is 1200 mm long - how does that fit a row?

It matches a standard 1.2 m bench or gutter module, so one fixture per module is the usual layout. Mounting is by lifting bracket, tripod stand or hanging rope, which means the same bar serves fixed benches and movable trolleys.

IP65 or IP66 - which is it?

IP65 is the rating carried in the technical table and IP66 appears on the product graphics. Both are wash-down ratings and the difference is jet-pressure tolerance rather than a different class of protection; either can be confirmed in writing for a tender.

What does an intercanopy light add that a top light cannot?

Light to the lower and inner leaves that a top light shadows. In a dense canopy the top third can be at saturation while the bottom third is below compensation point; a fixture at canopy height addresses that band directly. Our /industries/cannabis-cultivation page covers where that matters most.

Can the 240W version be supplied instead of 120W or 150W?

The 240W build appears in the product images and is listed as a variant. Its figures are not part of the published specification for this model, so they are not shown here; a written specification for the 240W build comes with the quotation.
