Greenhouse Top

800W Greenhouse Top Grow Light

An 800W greenhouse top light in a 700 × 315 × 112 mm aluminium body with 314 Samsung diodes, rated 108,000 lm at 160 lm/W. It dims over 0-10V or RJ12, is IP54 rated, and weighs 15 kg — a compact high-output fixture for overhead mounting.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Compact 700 × 315 × 112 mm body at 800W
314 Samsung diodes, 108,000 lm at 160 lm/W
0-10V or RJ12 dimming, dimmable and non-dimmable drivers
Aluminium heat-sink housing, IP54, 15 kg
Custom chip ratio for OEM orders

Model	STD-800W-G-002
Power	800W
Spectrum	Full Spectrum: White + Red + Blue + IR + UV
LED Chips	Samsung; 314 pcs; custom LED chip ratio
Dimming	0-10V knob dimming / RJ12 control; dimmable or non-dimmable; intelligent dimming and remote control
Dimensions	700 × 315 × 112 mm

Product Overview

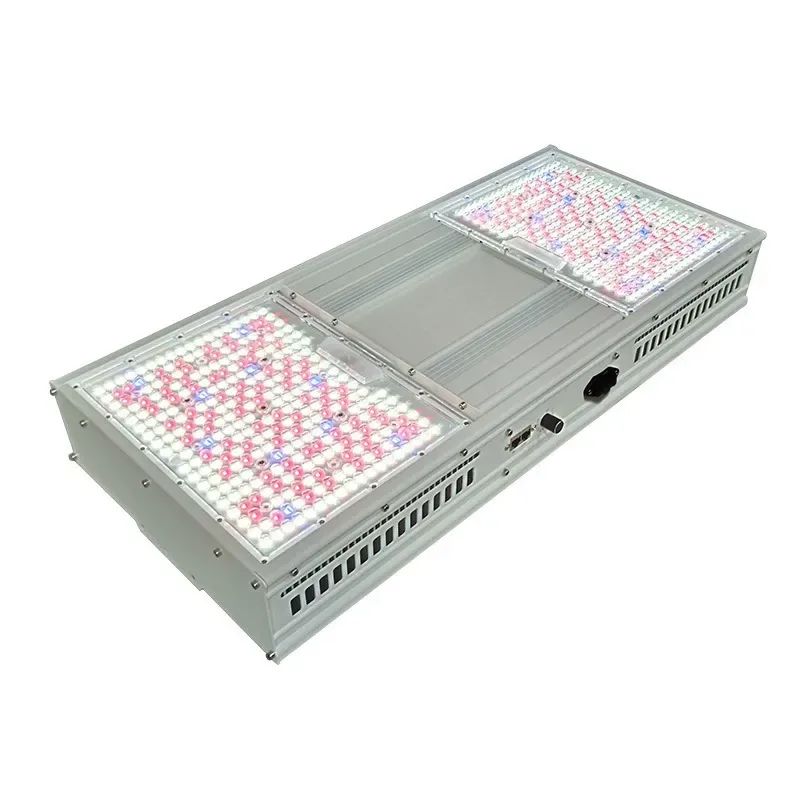

800W Greenhouse Top Grow Light

At 700 × 315 × 112 mm this is a compact high-output fixture rather than a long strip: 800W in a body that fits between structural members. The aluminium housing carries an integrated heat sink, and the 15 kg weight is manageable for standard greenhouse suspension.

Output is rated 108,000 lm at 160 lm/W on 314 Samsung diodes, with a customisable chip ratio for OEM orders and model-specific photometric data available on request. Dimming runs on 0-10V or RJ12, and both dimmable and non-dimmable driver options are offered, so a room can be specified with or without scheduled control.

Certification is not declared for this model, and driver voltage is confirmed with the order, so both are settled at quotation stage rather than assumed from a regional grid standard. The housing is IP54 and rated life is 50,000 hours.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	STD-800W-G-002
Power	800W
Spectrum	Full Spectrum: White + Red + Blue + IR + UV
LED Chips	Samsung; 314 pcs; custom LED chip ratio
Dimming	0-10V knob dimming / RJ12 control; dimmable or non-dimmable; intelligent dimming and remote control
Dimensions	700 × 315 × 112 mm
Net Weight	15 kg
IP Rating	IP54
Lifespan	50,000 hours
Housing Material	Aluminum
Luminous Flux	108000 lm
Luminous Efficacy	160 lm/W
Power Factor	0.95
LED Chip Count	314 pcs
Control Method	0-10V / RJ12 (0-10V knob dimming / RJ12 control)
Brand	SLTMAKS
Origin	Dongguan
Driver Options	Multiple drive options, dimmable or non-dimmable
Heat Sink	Aluminum alloy heat sink, fast heat dissipation
OEM/ODM	Available

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Spectrum

Full Spectrum: White + Red + Blue + IR + UV

LED Chips

Samsung; 314 pcs; custom LED chip ratio

Dimming

0-10V knob dimming / RJ12 control; dimmable or non-dimmable; intelligent dimming and remote control

Applications

Where It Is Used

Overhead mounting between structural members
Rooms specifying 0-10V or RJ12 control
OEM builds with a specified chip ratio

OEM & ODM

Build Your Private-Label Grow Light

800W Greenhouse Top Grow Light is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What is inside the STD-800W-G-002?

A single 800W top light with 314 Samsung diodes in a full-spectrum build covering white, red, blue, IR and UV - five channels including both ends outside the PAR band. It is one of the few fixtures in the range with UV on board as standard.

What are the physical dimensions?

700 x 315 x 112 mm at 15 kg net, IP54. That is a compact, high-density housing rather than a long bar, so it is hung as a point source over a bay instead of running the length of a row.

How is dimming handled?

0-10V knob dimming with RJ12 control, and the fixture is available in dimmable or non-dimmable versions. The intelligent dimming option adds remote control if you want scheduling rather than manual adjustment.

Which certifications come with it?

The supplier documentation for this build does not carry a usable certification listing, so we do not claim CE, ETL or UL for it here. If a listing is a purchase requirement, raise it before ordering - this is the model where that question matters most.

What input voltage does it accept?

Input voltage is not part of the published specification for this build, so no figure is shown here. The voltage for your site is confirmed in writing with the quotation rather than assumed from a wide-range input.

What LED chip ratio can be customized?

The custom LED chip ratio is an order-time option on this model, which is how the white/red/blue/IR/UV balance is set. If you are selling into a market with a defined spectrum expectation, specify the ratio rather than accepting the stock mix.

OEM & private label programs Request a quotation

Is an 800W point source right for a greenhouse?

It suits high-bay greenhouse and indoor top-lighting where a concentrated source is preferred over a bar array - typically tall crops and high trusses. For low tunnels and propagation benches it is far too concentrated, and a 250W bar is the better fit.
