Foldable LED Bar Grow Light Series – 100W to 1500W

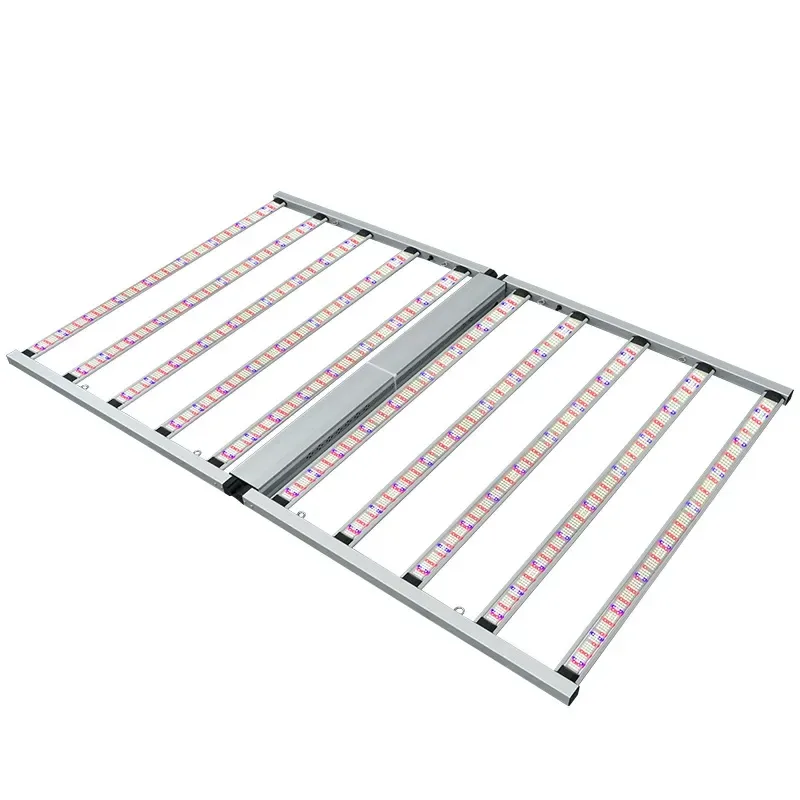

This listing covers the widest spread in the folding range: ten real tiers from 100W up to 1500W rather than a single wattage. Bar count and length move with the tier — the 1500W-class builds use fifteen bars at 4 × 6 ft, the 1200W uses twelve bars at 4 × 6 ft, and the smaller builds step down through ten, eight, six and four bars at 4 × 4 ft and 2 × 4 ft footprints.

The control section is the most complete of the family: 0–10V, PWM and an RJ45 port are all declared, so the fixture can join a daisy-chained room network instead of being adjusted fixture by fixture. Diodes are LM281B with a stated 160 lm/W and 160,000 lm output on the reference build.

Housing is IP54 aluminium at 18 kg net with a 3K temperature rise, and certification is ETL. Because the tiers differ in bar count, weight and carton size, freight planning should be done per tier rather than from a single figure — the packaging table in this folder lists carton dimensions and gross weight for every configuration.
