Foldable LED Bar

1200W Foldable LED Bar Grow Light

A 1200W folding fixture with 5280 diodes and a rated 160,000 lm at 160 lm/W. This model is specified for external control: 0–10V and PWM dimming alongside a local knob, five declared wavelengths from 5000K and 6500K white through 450 nm blue, 660 nm red and 730 nm far red.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

0–10V and PWM dimming for controller-driven rooms
Five declared wavelengths including 730 nm far red
5280 diodes, 160,000 lm at 160 lm/W
ETL certification, certificate 240605028SZN-001
IP54 housing, 19.5 kg, hanging mount

Model	AD12-1200-2C2-180
Power	1200W
Input Voltage	110-277V
Spectrum	Full spectrum; 5000K + 6500K white, 450nm blue, 660nm red, 730nm far-red
Dimming	PWM 0-10V dimming
Net Weight	19.5 kg

Product Overview

1200W Foldable LED Bar Grow Light

Of the folding range, this is the model written up for controlled-environment rooms: the dimming section lists PWM and 0–10V as well as a knob, so the fixture can be driven from a lighting controller rather than adjusted by hand. That is the practical difference between it and the knob-only bars.

The spectrum is declared as discrete wavelengths rather than a generic full-spectrum label: 5000K white, 6500K white, 450 nm blue, 660 nm red and 730 nm far red. For buyers comparing recipes across suppliers, that level of declaration is what makes a like-for-like comparison possible.

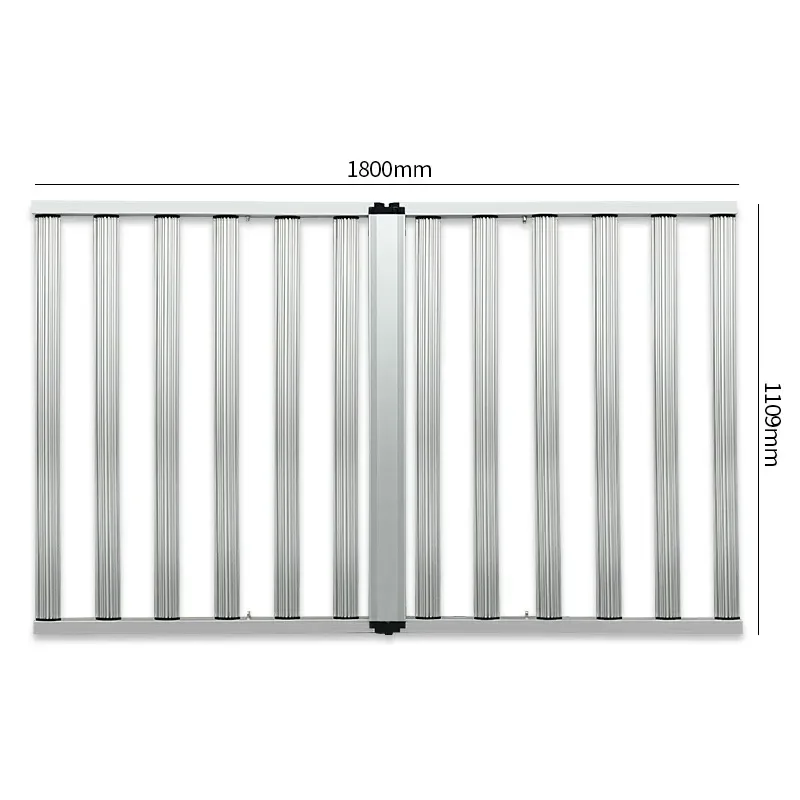

Mechanically it is a 1200W frame with 5280 diodes, 19.5 kg net, IP54 housing, a 3K temperature rise and hanging mounting on AC mains. Certification is ETL, quoted with certificate reference 240605028SZN-001. Rated output is 160,000 lm at 160 lm/W, and buyers can request model-specific photometric data when evaluating fixture layouts. Overall width and height for mounting clearance are supplied on the outline drawing that accompanies the quotation, which matters where a frame has to fit between structural members.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	AD12-1200-2C2-180
Power	1200W
Input Voltage	110-277V
Spectrum	Full spectrum; 5000K + 6500K white, 450nm blue, 660nm red, 730nm far-red
Dimming	PWM 0-10V dimming
Net Weight	19.5 kg
IP Rating	IP54
Lifespan	50,000 hours
Certifications	ETL (North America)
Housing Material	Aluminum
Luminous Flux	160000 lm
Luminous Efficacy	160 lm/W
Power Factor	0.95
LED Count	5280
Temperature Rise	3K
Certificate No.	240605028SZN-001 (supplier-stated)
Power Supply	AC
Wavelengths	5000K / 6500K / 450nm / 660nm / 730nm

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

110-277V

Spectrum

Full spectrum; 5000K + 6500K white, 450nm blue, 660nm red, 730nm far-red

Dimming

PWM 0-10V dimming

Applications

Where It Is Used

Rooms running scheduled dimming from a central controller
Spectrum-comparison trials across suppliers
North American installations needing ETL paperwork

OEM & ODM

Build Your Private-Label Grow Light

1200W Foldable LED Bar Grow Light is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What does the AD12-1200-2C2-180 model number tell me?

AD12-1200-2C2-180 is the supplier SKU for this 1200W two-channel foldable bar, and the 2C in the code refers to the two-channel control architecture. The fixture is a single 1200W build rather than a wattage family, so what you see on this page is what ships.

What does two-channel control actually let me do?

It splits the array into two independently dimmable groups, driven over 0-10V or PWM. In practice that means you can run one channel for vegetative growth and bring the second channel up at flip, or use the second channel for a finishing spectrum, without buying a second fixture or a separate controller.

What is the exact wavelength mix?

Full spectrum built from 5000K and 6500K white, 450nm blue, 660nm red and 730nm far-red. The two white temperatures give a broader blue-green base than a single-white build, the 660nm peak carries photosynthesis in flowering, and 730nm adds the far-red end.

Is it CE or ETL?

ETL listed for North America on this build. If you are supplying the EU or UK instead, the same bar platform is available in a CE version - specify the destination when you ask for a quotation so the listing matches the market.

How much does a 1200W unit weigh, and how does it ship?

19.5 kg net. It folds, so it travels as a flat carton rather than a pallet-sized crate, which is the main reason foldable bars are cheaper to freight than rigid panels of similar output.

Will IP54 survive a commercial room with regular foliar spraying?

IP54 handles splashes and condensation, which covers normal foliar mist and floor wash-down. It is not a jet-wash rating, so fixtures should not be sprayed directly during sanitation - the same rule applies to any IP54 grow light.

Indoor growing lighting

Can the two channels be mapped to a custom spectrum recipe?

Yes. Because the array is already split, a private-label order can assign different diode ratios to each channel - for example a blue-heavy channel one and a red-heavy channel two - and the fixture still ships as a single 0-10V/PWM unit.
