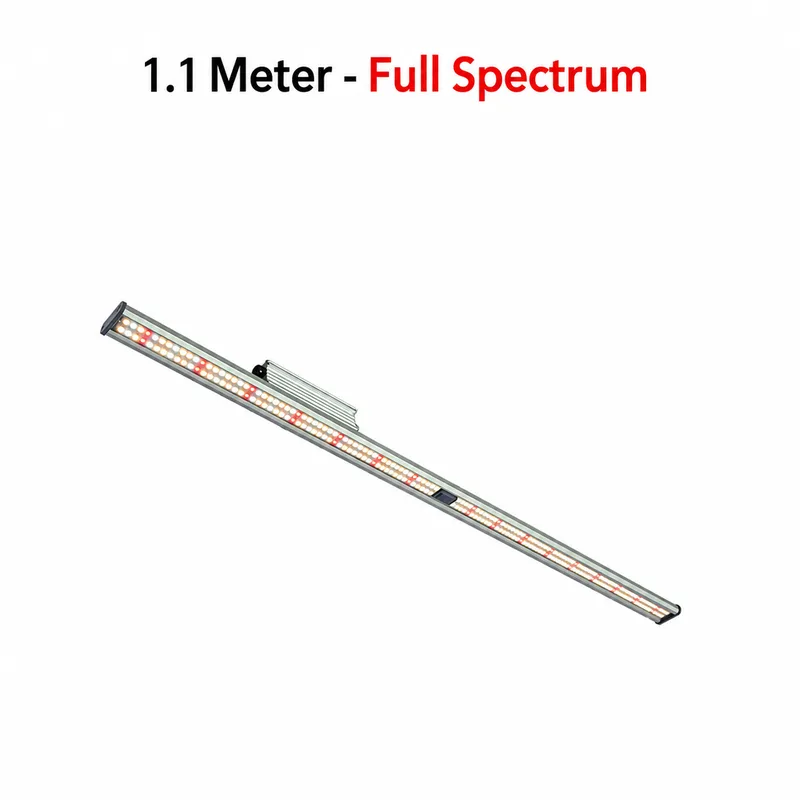

Propagation & Rack Grow Light – 1.1 m Bar

A 1100 × 70 × 76 mm seedling bar rated 100W and 120W, carrying 216 diodes, rated 36,000 lm at 240 lm/W. It is IP65, comes in a seedling spectrum and a growth spectrum, and offers knob, remote, WiFi and RJ14 series control.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Two spectra: seedling and growth full spectrum
216 diodes, 36,000 lm at 240 lm/W rated
Knob, remote, WiFi timer and RJ14 series control
IP65 aluminium, 2.6 kg, 50,000 hour life
CE, certificate reference LCS200301006DE

Model	BY-ZWYWM-VEG-1500
Power	100W/120W
Input Voltage	100-277V
PPE	2.8 µmol/J
Spectrum	Full spectrum (customized); options: 1.1m seedling spectrum, 1.1m growth full spectrum
LED Chips	LM301B / LM301H / LM281B / LM561C (Samsung)

Product Overview

Propagation & Rack Grow Light – 1.1 m Bar

This bar is sold on two spectra rather than one: a seedling recipe and a growth full-spectrum recipe, both in the 1.1 m body. A propagation room can therefore run the same fixture through germination and early vegetative by choosing the spectrum at order, instead of swapping hardware between stages.

The control set is the fullest in the propagation range — knob, smart remote, WiFi timer and RJ14 series connection — so a rack can be grouped and scheduled without per-bar adjustment. Housing is aluminium, IP65, at 2.6 kg with a 25K temperature rise and a 50,000 hour rated life.

Output is rated 36,000 lm at 240 lm/W on 216 diodes, with PPE at 2.8 µmol/J. Certification is CE, quoted with certificate reference LCS200301006DE. The model is BY-ZWYWM-VEG-1500, and the product is positioned specifically for seed germination and seedling production; a PPFD map is supplied for 30, 45 and 60 cm mounting heights.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	BY-ZWYWM-VEG-1500
Power	100W/120W
Input Voltage	100-277V
PPE	2.8 µmol/J
Spectrum	Full spectrum (customized); options: 1.1m seedling spectrum, 1.1m growth full spectrum
LED Chips	LM301B / LM301H / LM281B / LM561C (Samsung)
Dimming	knob dimming, (smart remote), WIFI (WiFi timer), RJ14 (RJ14 series)
Dimensions	1100 × 70 × 76 mm
Net Weight	2.6 kg
IP Rating	IP65
Lifespan	50,000 hours
Mounting Height	12" (30cm), 18" (45cm), 24" (60cm) — PPFD map heights
Certifications	CE (EU) — supplier-stated, certificate No. LCS200301006DE
Coverage	5FT (150cm) PPFD map area; tested in a 4x8ft grow tent
Brand	BOYA
Origin	Zhongshan, Guangdong
Housing Material	Aluminum alloy
Luminous Flux	36000 lm
Luminous Efficacy	240 lm/W
Power Factor	>0.98
LED Chip Count	216
Temperature Rise	25 K
Color	(full spectrum, dimmable)
Application	plant seed germination / seedling

Available Variants

Model	PPE	Dimensions	Configuration
BY-ZWYWM-VEG-1500	2.8 µmol/J	1100 × 70 × 76 mm	1.1 m - (Seedling Spectrum)
BY-ZWYWM-VEG-1500	2.8 µmol/J	1100 × 70 × 76 mm

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

100-277V

PPE

2.8 µmol/J

Spectrum

Full spectrum (customized); options: 1.1m seedling spectrum, 1.1m growth full spectrum

LED Chips

LM301B / LM301H / LM281B / LM561C (Samsung)

Dimming

knob dimming, (smart remote), WIFI (WiFi timer), RJ14 (RJ14 series)

Applications

Where It Is Used

Germination chambers and seedling racks
Racks moving from germination to early vegetative
Grouped scheduling over WiFi or RJ14

OEM & ODM

Build Your Private-Label Grow Light

Propagation & Rack Grow Light – 1.1 m Bar is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What PPE does this bar quote?

2.8 µmol/J on a 100W and 120W platform. It is one of the higher efficacy figures in the rack range, which matters on a multi-tier rack because every watt of waste heat has to be removed from a confined space.

What does the 5 ft coverage figure mean?

The PPFD map covers a 5 ft (150cm) area when tested in a 4x8 ft grow tent. That is wider than the 4x1 ft shelf coverage of the smaller bars, so one unit spans a longer bench - at the cost of lower intensity at the ends.

The spectrum row mentions 1.1 m seedling and growth options - what is that?

This bar is offered in two spectrum builds: a seedling spectrum and a growth full-spectrum, both tuned for a 1.1 m bar. Choosing between them is a crop-stage decision, not an electrical one - seedlings want the tighter, bluer mix and vegetative growth wants the fuller one.

Propagation lighting

What control options are there?

Knob dimming, a smart remote, WiFi with an onboard timer and an RJ14 series port. That is the widest control set in the rack range, which suits a propagation room that runs different tiers on different schedules.

How many diodes, and which ones?

LM301B, LM301H, LM281B or LM561C in a Samsung set, depending on the build. LM301H is the efficiency option and LM281B the cost-optimised one, so the diode mix can be matched to the price band you are selling into.

What is the physical size?

1100 x 70 x 76 mm profile at 2.6 kg net, IP65. The 70 mm depth is shallow enough to sit under a shelf above without shadowing the tier below.

Is the mounting height fixed?

No - the PPFD map was taken at 12in (30cm), 18in (45cm) and 24in (60cm), so any of those is a defensible starting point. On a rack you are usually constrained by tier spacing, so use the map to pick the tier height rather than adjusting the fixture afterwards.
