Propagation & Rack

Propagation & Rack Grow Light Series – 18W / 25W / 36W

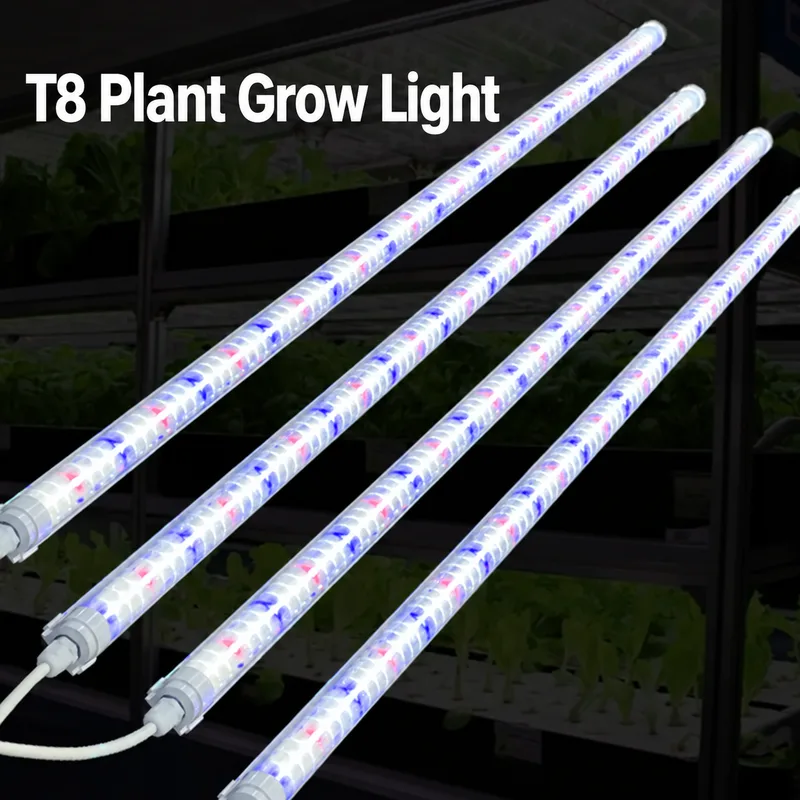

A 1.2 m T8 tube offered at 18W, 25W and 36W, delivering 2520 lm from Samsung diodes. It is the only product in the range with Japanese PSE certification, comes in three spectrum configurations, and uses a waterproof connector instead of a dimmer.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

1.2 m T8 tube for standard fittings
Japanese PSE certification
18W, 25W and 36W versions
Three spectra: 460+660 nm, 6500K+460+660 nm, 6500K
IP65 with waterproof lead, on/off only

Model	T8
Power	18W/25W/36W
Input Voltage	110-277V
Spectrum	Options: 460nm + 660nm; 6500K + 460nm + 660nm; 6500K
LED Chips	Samsung
IP Rating	IP65

Product Overview

Propagation & Rack Grow Light Series – 18W / 25W / 36W

This is a tube, not a bar: a 1.2 m T8 format that drops into standard horticultural tube fittings. That makes it the easiest product in the range to retrofit into an existing shelf or rack that already uses tube lighting, without changing the fixture hardware.

Three power versions are listed — 18W, 25W and 36W — and three spectrum configurations: 460 nm plus 660 nm for a red-blue recipe, 6500K plus 460 nm plus 660 nm for a white-based mix, and 6500K alone. The supplier positions the tube for compact growth and colour development in leafy and succulent crops.

Certification is Japanese PSE, which is unusual in this catalogue and relevant for buyers selling into Japan. The housing is PVC with an aluminium spine, IP65, and the connection is a waterproof lead rather than a dimmer — this is an on/off fixture, so scheduling has to happen upstream. Output is 2520 lm on Samsung diodes with a 30,000 hour rated life.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	T8
Power	18W/25W/36W
Input Voltage	110-277V
Spectrum	Options: 460nm + 660nm; 6500K + 460nm + 660nm; 6500K
LED Chips	Samsung
IP Rating	IP65
Lifespan	30,000 hours
Certifications	PSE (Japan PSE) — supplier-stated, certificate No. NTC-SC2407045
Brand	ANDY
Housing Material	pvc+ (PVC + aluminum alloy)
Origin	Shenzhen, Guangdong
Luminous Flux	2520 lm
Power Factor	0.9
Temperature Rise	3 K
Control Method	waterproof wire/connector
Color	1.2 m-18W, 1.2 m-25W, 1.2 m-36W

Available Variants

Model	Power	Length
T8	18W	1.2 m
T8	25W
T8	36W

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

110-277V

Spectrum

Options: 460nm + 660nm; 6500K + 460nm + 660nm; 6500K

LED Chips

Samsung

Applications

Where It Is Used

Retrofit of existing T8 shelf fittings
Leafy green and succulent benches
Products destined for the Japanese market

OEM & ODM

Build Your Private-Label Grow Light

Propagation & Rack Grow Light Series – 18W / 25W / 36W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What is a T8 propagation tube used for?

It is a narrow single-tube fixture for shelves, trolleys and multi-tier racks where a bar array is too wide. At 18W it is a low-intensity source for seedlings, microgreens and rooting cuttings, and the same tube is available at 25W and 36W.

Propagation lighting

Which spectra can I order?

Three: 460nm blue plus 660nm red, 6500K white plus 460nm blue plus 660nm red, or 6500K white alone. The red-blue build pushes compact growth, the mixed build keeps leaf colour readable, and the 6500K-only build is for general propagation lighting.

Does a T8 tube need a separate fixture?

No, it is a complete sealed tube with Samsung diodes and an IP65 rating - it does not need a batten. That is the point of the format: a rack with existing tube clips can be relamped without new wiring.

Why does this model carry PSE rather than CE?

Because this build is certified for the Japanese market, with PSE certificate NTC-SC2407045. PSE is the Japanese electrical safety mark; if you are supplying the EU or North America, a different listing is needed and should be specified before the order.

What is the service life?

30,000 hours. That is a mid-range figure for the rack category - the 100W and 120W bars quote 50,000 and 20,000 hours respectively, so it is worth checking per model rather than assuming one figure across a rack build.

How many tubes for a propagation shelf?

Depends on shelf depth and target intensity, which we will not guess. What we can say is that the 18W build is the lowest of the three wattages, so it suits shelves where tubes sit close to the trays; for a taller gap, the 25W or 36W version is the direct substitute.

Can the tube length be customized?

Tube length is a standard customization on this format, and rack systems vary widely between 0.6 m and 1.2 m modules. Tell us the shelf width and we will confirm which lengths are available before you commit to a quantity.
