Propagation & Rack Grow Light Series – 100W / 300W / 400W

A 1045 mm rack bar rated 100W, carrying 281B diodes and delivering 14,946 lm in a white, warm white, blue, red and infrared mix. It is IP54 rated, weighs 3 kg, and dims by knob — a slim fixture for shelf and rack layers with limited headroom.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Single 1045 mm bar for shelf and rack layers
14,946 lm from 281B diodes
White, warm white, blue, red and infrared mix
IP54, 3 kg, knob dimming
Family also lists 300W and 400W multi-bar versions

Model	AD1-100-1C2-110
Power	100W/300W/400W
Input Voltage	110-277V; 110-277VAC 50/60Hz
PPF	250 µmol/s (380-780nm)
PPE	2.5 µmol/J
Spectrum	Full spectrum white light (3000K + 6500K) + 660nm + 460nm + 730nm

Product Overview

Propagation & Rack Grow Light Series – 100W / 300W / 400W

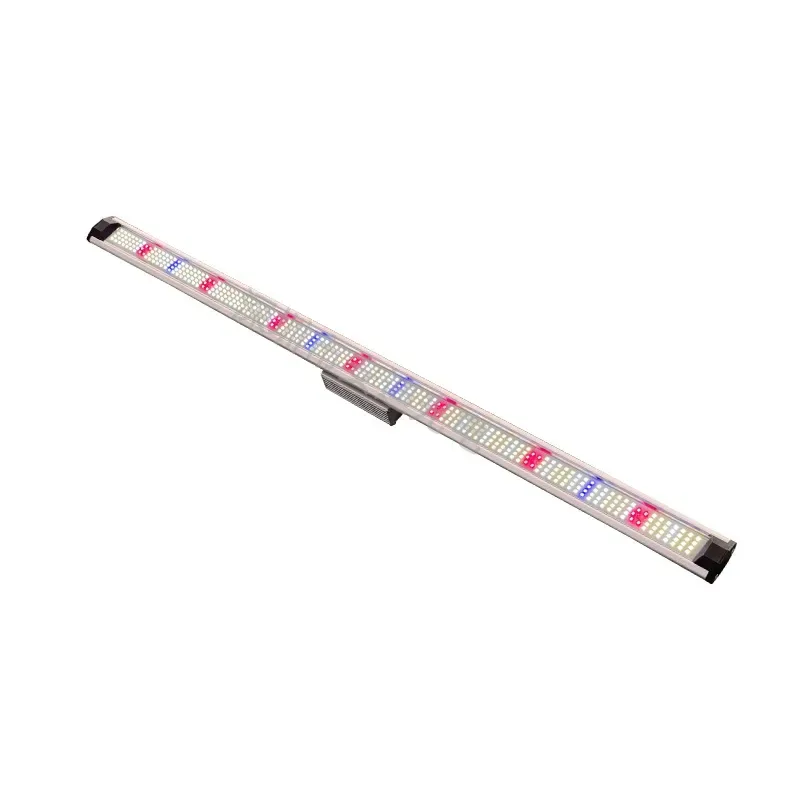

This is a single 1045 mm bar intended for the layer above a propagation tray or shelf. The slim aluminium body and 3 kg weight keep the load off lightweight racking, and the IP54 rating is adequate for misted propagation areas as long as the bar is not directly sprayed.

Output is 14,946 lm from 281B diodes, with a spectrum of white, warm white, blue, red and infrared — broader than a blue-only propagation recipe, so the same bar can carry a crop from germination into early vegetative without a fixture change. This listing is the single-bar base of a family that also covers 300W and 400W multi-bar builds.

Dimming is a knob on the fixture, with a 3K temperature rise and a 30,000 hour rated life. Photometric output is published as 250 µmol/s at 2.5 µmol/J, which is the figure to use for photon-based planning. Certification is CE, quoted with certificate reference NTC-SC2409006.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	AD1-100-1C2-110
Power	100W/300W/400W
Input Voltage	110-277V; 110-277VAC 50/60Hz
PPF	250 µmol/s (380-780nm)
PPE	2.5 µmol/J
Spectrum	Full spectrum white light (3000K + 6500K) + 660nm + 460nm + 730nm
LED Chips	281B
Dimming	knob dimming; 0-10V + RJ14 Series port
Dimensions	1045 mm; 1045 × 55mm
Net Weight	3 kg
IP Rating	IP54
Lifespan	30,000 hours
Certifications	CE (EU) — supplier-stated, certificate No. NTC-SC2409006
Coverage	4ft1ft (100W); 4ft2ft (300W/400W)
Brand	ANDI Plant Light
Housing Material	Aluminum alloy
Luminous Flux	14946 lm
Power Factor	0.95
Temperature Rise	3 K
Bar Quantity	1 Bar (100W); 3 Bar (300W); 4 Bar (400W)
Product Size	104555mm (100W); 1100530mm (300W/400W)
Accessories	3-meter Hanging Rope, Mounting Buckle, User Manual, RJ14 Cable, Power Cord Plug
Control Method	knob dimming

Available Variants

Model	Power	PPF	PPE	Dimensions
AD1-100-1C2-110	100W	250 µmol/s (380-780nm)	2.5 µmol/J	1045 × 55mm
AD3-300-1C2-053	300W	765 µmol/s (380-780nm)	2.55 µmol/J	1100 × 530mm
AD4-400-1C2-053	400W	1040 µmol/s (380-780nm)	2.6 µmol/J	1100 × 530mm

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

110-277V; 110-277VAC 50/60Hz

PPF

250 µmol/s (380-780nm)

PPE

2.5 µmol/J

Spectrum

Full spectrum white light (3000K + 6500K) + 660nm + 460nm + 730nm

LED Chips

281B

Dimming

knob dimming; 0-10V + RJ14 Series port

Applications

Where It Is Used

Propagation shelves and multi-layer racks
Seedling-to-vegetative transitions on one bar
Low-headroom layers where a panel will not fit

OEM & ODM

Build Your Private-Label Grow Light

Propagation & Rack Grow Light Series – 100W / 300W / 400W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

What PPF does the 100W bar deliver?

250 µmol/s across 380-780nm at 2.5 µmol/J. The 380-780nm span covers the full PAR band plus the near-UV edge, which is relevant for propagation work where the blue and UV-A end affects compactness.

How many bars do I need per rack tier?

One bar covers roughly 4ft x 1ft at 100W; the 300W and 400W builds cover 4ft x 2ft. Bar quantity options are 1, 3 or 4 bars, so a four-tier rack with a 4x1ft footprint takes one 100W bar per tier.

Propagation lighting

How long is the bar?

1045 mm, in a 1045 x 55 mm profile. That length is chosen to span a standard 4 ft rack width with the housing sitting between the shelf uprights rather than under them.

What spectrum is used for propagation?

Full-spectrum white from 3000K and 6500K, plus 660nm red, 460nm blue and 730nm far-red. The blue share keeps transplants compact and the white content lets you judge leaf colour, which matters when staff are scouting for deficiency.

How are multiple tiers controlled?

Knob dimming for local adjustment, 0-10V for external control and an RJ14 series port so tiers can be linked. That combination is what lets one controller schedule four tiers with different intensities for cuttings, rooted clones and hardened-off plants.

IP54 on a propagation rack - is that enough?

IP54 covers splash and condensation from misting and domes. Propagation benches are misted from above rather than hosed, so IP54 is normally sufficient - but keep the bar out of the direct spray line from nozzles.

Can the bar length be changed for a non-standard rack?

Yes. Bar length, bar count, wattage and spectrum are all configurable, and the 1045 mm profile is one point on that range. Give us the rack width and upright spacing and we will propose a length rather than asking you to adapt the rack.
