Propagation & Rack Grow Light Series – 120W to 300W

A 1156 × 97.5 × 87.6 mm tube rated from 120W to 300W, with 468 LM281B diodes and 14,400 lm at 120 lm/W. It has a PC protective cover over an aluminium body, IP65 sealing, knob dimming, and comes in rope-hung or screw-clamped versions from 1.2 m to 2.4 m.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

PC protective cover over an aluminium body
120W to 300W across 1.2 m, 1.8 m and 2.4 m lengths
468 LM281B diodes, 14,400 lm at 120 lm/W
IP65, knob dimming, 50,000 hour life
Rope-hung or screw-clamped mounting

Model	AD3T-UC120-13D426-120
Power	120W/150W/200W/240W/300W
Input Voltage	110-277V
PPE	2.8 µmol/J
Spectrum	Full spectrum: 3000K warm white + 6500K white + 450nm blue + 660nm red + 730nm far red
LED Chips	LM281B

Product Overview

Propagation & Rack Grow Light Series – 120W to 300W

The PC cover is the practical difference here. It sits over the diode array to keep dust and water off the emitters while passing light, which is what allows an IP65 rating on a tube that is often mounted low in a wet propagation area. The aluminium body behind it provides the structure and the heat path.

The fixture is offered from 120W to 300W, with length tracking the tier: 1.2 m at 120W and 150W, 1.8 m at 200W, and 2.4 m at 240W and 300W. Diodes are LM281B, 468 in total, rated 14,400 lm at 120 lm/W with a 3K temperature rise and a 50,000 hour rated life.

Mounting is either a lifting rope or a snap-on screw clamp, and brightness adjusts across the seedling, growth and flowering cycle. Certification is CE, quoted with certificate reference HX251106E006C. The body is shared across the tiers and the model number is common to the range, so length and wattage are specified with the order.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	AD3T-UC120-13D426-120
Power	120W/150W/200W/240W/300W
Input Voltage	110-277V
PPE	2.8 µmol/J
Spectrum	Full spectrum: 3000K warm white + 6500K white + 450nm blue + 660nm red + 730nm far red
LED Chips	LM281B
Dimming	knob dimmer
Dimensions	L1156 × W97.5 × H87.6 mm
Net Weight	3 kg
IP Rating	IP65
Lifespan	50,000 hours
Certifications	CE (EU) — supplier-stated, certificate No. HX251106E006C
Brand	ANDI
Housing Material	pc + (PC protective cover + aluminum alloy)
Origin	Shenzhen
Luminous Flux	14400 lm
Luminous Efficacy	120 lm/W
Power Factor	0.95
LED Chip Count	468
Temperature Rise	3 K
Color	(lifting-rope mount / snap-on screw mount)
Application	brightness-adjustable for seedling, growth, flowering and fruiting full cycle

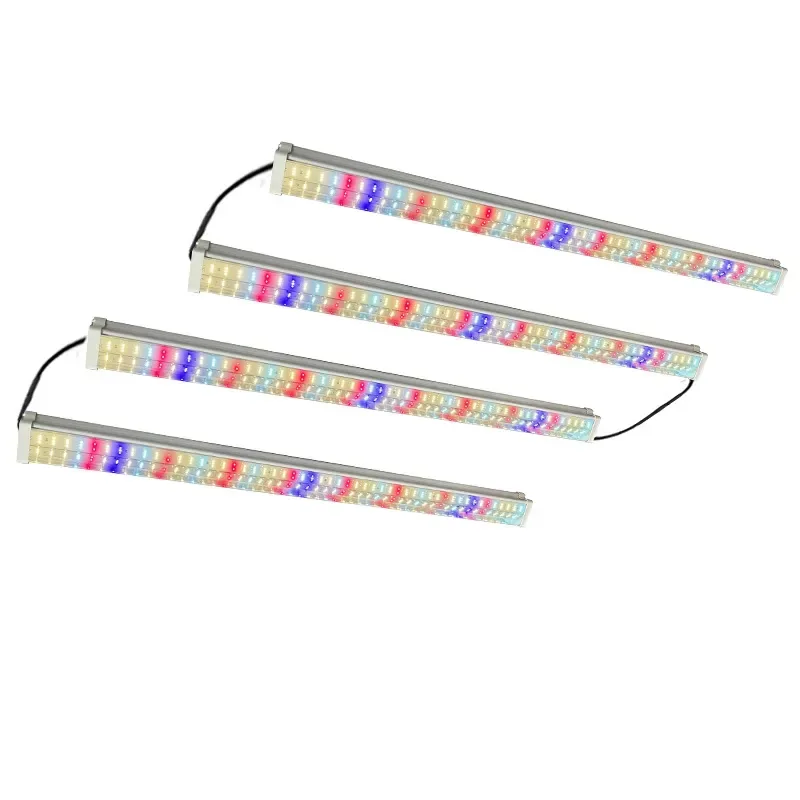

Waterproof	IP65 waterproof joint; multiple cascaded; one-click control

Available Variants

Model	Power	PPE	Dimensions	Length
AD3T-UC120-13D426-120	120W	2.8 µmol/J	L1156W97.5H87.6 mm	1.2 m
AD3T-UC120-13D426-120	150W	2.8 µmol/J
AD3T-UC120-13D426-120	200W	2.8 µmol/J
AD3T-UC120-13D426-120	240W	2.8 µmol/J
AD3T-UC120-13D426-120	300W	2.8 µmol/J

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

110-277V

PPE

2.8 µmol/J

Spectrum

Full spectrum: 3000K warm white + 6500K white + 450nm blue + 660nm red + 730nm far red

LED Chips

LM281B

Dimming

knob dimmer

Applications

Where It Is Used

Wet propagation areas needing a covered emitter
Racks with 1.2 m to 2.4 m layer spans
Seedling through flowering on one fixture family

OEM & ODM

Build Your Private-Label Grow Light

Propagation & Rack Grow Light Series – 120W to 300W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

Is this a rack bar or a tube light?

It is a 1156 mm sealed tube-style bar with a built-in 110-277V power supply, sold at 120W, 150W and 200W. The integrated driver means there is no external ballast box to mount on the rack.

Propagation lighting

What PPE does it quote?

2.8 µmol/J, with LM281B diodes in a full-spectrum mix of 3000K, 6500K, 450nm blue, 660nm red and 730nm far-red.

Why does a built-in driver matter on a rack?

Because a multi-tier rack has very little mounting space behind the shelf. An external driver has to be fixed somewhere with airflow and a cable run to each bar; an integrated supply removes both, at the cost of a slightly warmer housing.

How is it controlled?

A knob dimmer on the fixture. There is no 0-10V or network input on this build, so it is set per bar rather than from a controller - which is fine for a room that runs one schedule, less so for tier-by-tier staging.

What are the dimensions and weight?

1156 x 97.5 x 87.6 mm and 3 kg net, IP65. The 87.6 mm height includes the integrated power supply and is the figure to check against your tier gap.

Does it have a certificate reference?

Yes, CE with certificate HX251106E006C. Request the document with the quotation if your customer's compliance file needs it.

Can the 200W version replace two 120W bars?

Not directly - the 200W build is the same 1156 mm housing at higher loading, so it delivers more intensity from one tube rather than covering a wider area. For a wider bench, two 120W bars at spacing are the better answer; for more intensity on the same footprint, take the 200W.
