Quantum Board

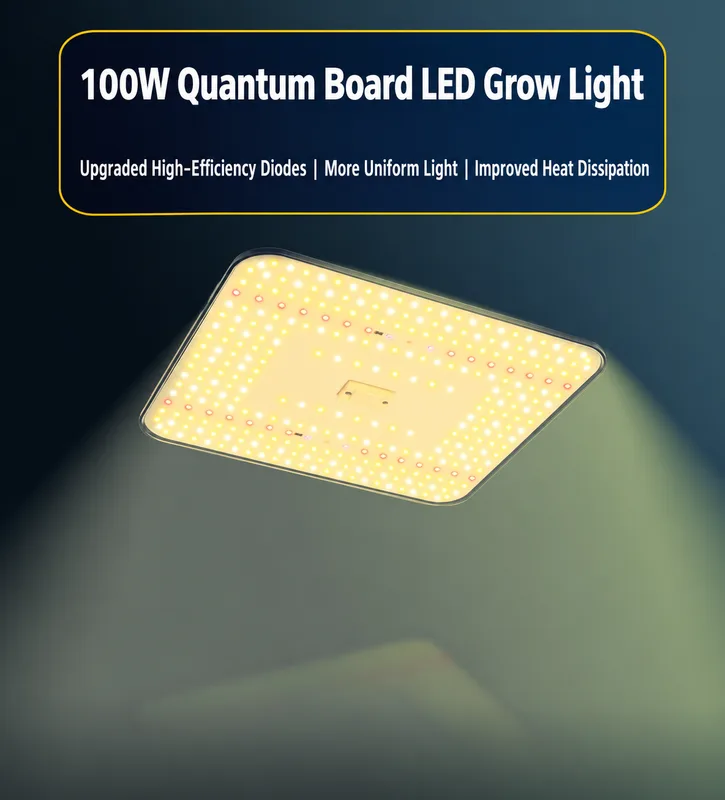

100W Quantum Board Grow Light

A 100W board in a 646 × 266 × 58 mm plastic housing with 621 diodes. It accepts AC 120–277 V, is IP65 rated, and uses smart dimming with remote, timer, WiFi and daisy-chained group control — a low-cost entry board for small rooms and tents.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Plastic housing, 646 × 266 × 58 mm, 7 kg
IP65 sealed enclosure
AC 120–277 V input
621 diodes, WiFi and daisy-chain group control
PPF and PPE quoted per model on request

Model	PB-001
Power	100W
Input Voltage	AC120-277V
Spectrum	well-balanced full spectrum: white, blue, red light and infrared light; 3000K, 6500K, 660nm red and 730nm light
LED Chips	LED 621
Dimming	WIFI

Product Overview

100W Quantum Board Grow Light

The distinguishing feature here is the housing material: plastic rather than aluminium, which brings the weight to 7 kg for a 646 × 266 × 58 mm body and changes how the board handles heat and cleaning. It is still IP65 rated, so the enclosure is sealed against spray despite the material.

Input is AC 120–277 V, wide enough for North American and European supplies. The board carries 621 diodes, uses smart dimming with remote, timer, WiFi and daisy-chain group control, and runs at a 0.9 power factor. The published −30 to 40 K figure describes the ambient operating window rather than a temperature rise.

This board sits at the value end of the range. PPF and PPE are quoted per model rather than published as a series figure, so a lighting plan is normally built from PPFD measurement or from model-specific photometric data supplied with the quotation. Certification is CE. For buyers comparing on cost per watt, the absence of published photometric data is the trade-off to weigh.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	PB-001
Power	100W
Input Voltage	AC120-277V
Spectrum	well-balanced full spectrum: white, blue, red light and infrared light; 3000K, 6500K, 660nm red and 730nm light
LED Chips	LED 621
Dimming	WIFI
Dimensions	646 × 266 × 58mm
Net Weight	7 kg
IP Rating	IP65
Lifespan	50,000 hours
Certifications	CE
Power Factor	0.9
Temperature Rise	-30-40 K
Brand	boya

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

AC120-277V

Spectrum

well-balanced full spectrum: white, blue, red light and infrared light; 3000K, 6500K, 660nm red and 730nm light

LED Chips

LED 621

Dimming

WIFI

Applications

Where It Is Used

Budget-sensitive small rooms and tents
Dual-voltage distribution across regions
Fill-in positions where photometric data is not required

OEM & ODM

Build Your Private-Label Grow Light

100W Quantum Board Grow Light is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

This model is a single 100W board - is there a larger version?

No, PB-001 is a fixed 100W board with no wattage family behind it. That makes it straightforward to specify: one SKU, one output, no variant table to work through.

What is the exact wavelength mix?

A balanced full-spectrum mix of 3000K, 6500K, 660nm red and 730nm far-red, covering white, blue, red and infrared. The 3000K content adds warmth that a 6500K-only board lacks, and the 730nm channel carries the far-red end.

Why does a 100W board weigh 7 kg?

Because the 646 x 266 x 58 mm body is a sealed IP65 housing with a heatsink, not an open frame with exposed fins. The mass is the price of the IP65 rating and passive cooling without a fan.

Indoor growing lighting

The input is AC120-277V - will it run on a 110V supply?

The quoted range starts at 120V, so a nominal 110V North American circuit is below the stated minimum. If your site runs 110-120V, confirm the supply voltage with your electrician before ordering, or ask us to quote the 100-277V variant instead.

How is it controlled?

WiFi. There is no analogue dimming input on this board, so it is a fit for rooms that already accept wireless controllers rather than for hard-wired 0-10V installations.

What is the LED count and diode type?

621 LEDs. The diode brand is not named in the published specification for this build, so we do not attribute it to Samsung or any other supplier - if the diode brand is part of your purchase specification, it is confirmed in writing with the quotation.

Can this board be private-labelled?

Yes, with branding on the housing and carton. Because the board is a single fixed wattage, the usual customization is the artwork and the plug type rather than the electrical build - though spectrum changes can be quoted separately.

OEM & private label programs Request a quotation

Still Have Questions About This Grow Light?

Our technical team can confirm specifications, provide a lighting layout for your room, and return a configuration and quotation within one business day.

Ask Our Team
