Foldable LED Bar

720W Foldable LED Bar Grow Light

A 720W three-fold fixture measuring 105.8 × 108.5 cm open, with 2700 Samsung and Epistar diodes rated 115,200 lm at 160 lm/W. It carries ETL, UL and CE, runs on 100–277 V, and offers either 0–10V knob dimming or a smart control panel.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Three-fold frame, 105.8 × 108.5 cm open, 15 kg
ETL, UL and CE on one fixture
100–277 V input for North American and European supplies
0–10V knob dimming or smart control panel
2700 Samsung / Epistar diodes, 115,200 lm at 160 lm/W

Model	STG-720W-F-01
Power	720W
Input Voltage	100-277V
LED Chips	Samsung / Epistar, JLC power supply
Dimming	0-10V knob dimming / smart control panel
Dimensions	105.8cm x 108.5cm

Product Overview

720W Foldable LED Bar Grow Light

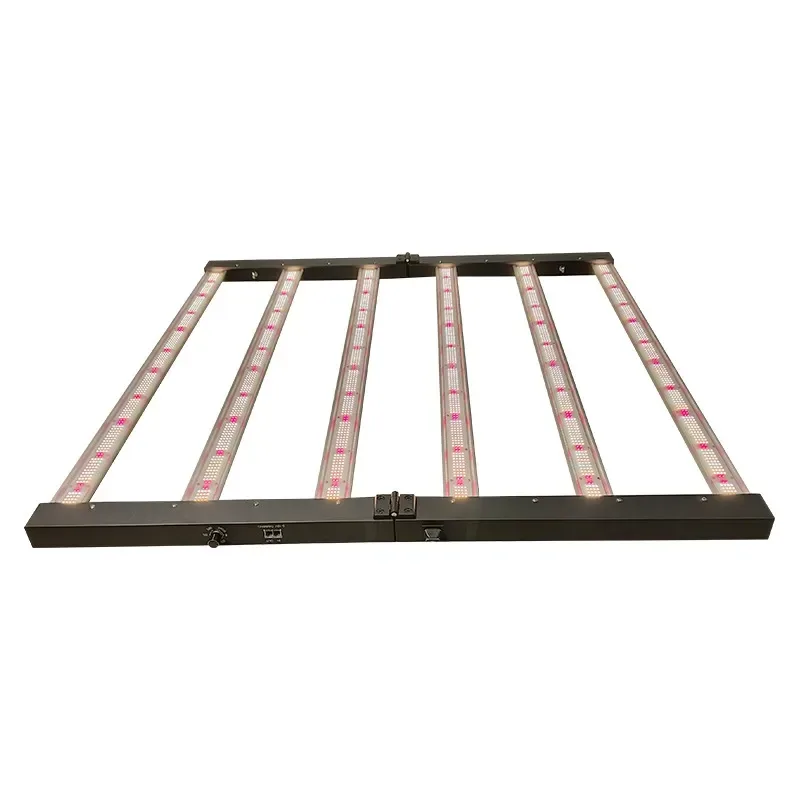

This is the three-fold format at 720W: it opens to roughly a square metre, 105.8 × 108.5 cm, and weighs 15 kg, so it can be handled by one installer. The frame folds into a compact package for freight, which is the main reason buyers pick this shape over a rigid bar frame of the same footprint.

Diodes are declared as Samsung and Epistar, 2700 in total, rated 115,200 lm at 160 lm/W. The input range is 100–277 V, wide enough for both North American and European supplies without a transformer, and the fixture carries ETL, UL and CE — the broadest certification set in the folding range, useful where a project needs both North American and European approvals.

Control is either a 0–10V knob or a smart control panel, so the same fixture can be specified for a simple room or for a scheduled installation. Housing is IP54 aluminium. Because the model number embeds the wattage (STG-720W-F-01), reordering a spare with a different tier means a different model code rather than a configurable option.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Model	STG-720W-F-01
Power	720W
Input Voltage	100-277V
LED Chips	Samsung / Epistar, JLC power supply
Dimming	0-10V knob dimming / smart control panel
Dimensions	105.8cm x 108.5cm
Net Weight	15 kg
IP Rating	IP54
Lifespan	50,000 hours
Certifications	ETL, UL, CE
Housing Material	Aluminum
Luminous Flux	115200 lm
Luminous Efficacy	160 lm/W
Power Factor	0.95
LED Count	2700

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

100-277V

LED Chips

Samsung / Epistar, JLC power supply

Dimming

0-10V knob dimming / smart control panel

Applications

Where It Is Used

Single-installer rooms with roughly square bay layouts
Projects requiring both UL and CE documentation
Dual-voltage distribution across regions

OEM & ODM

Build Your Private-Label Grow Light

720W Foldable LED Bar Grow Light is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

Is the STG-720W-F-01 a full fixture or a frame that takes third-party bars?

It is a complete 720W fixture with its own diodes and JLC power supply, not a bare frame. Samsung and Epistar diodes are used depending on the configuration, and the power supply is a known JLC unit rather than an unbranded driver.

What does the 105.8 x 108.5 cm footprint suit?

It is close to a square metre, which makes it a natural fit for 4x4 ft tents and for bench modules in a larger room. Because the frame is nearly square rather than long and narrow, it also works as a single-point top light over a square propagation bay.

How is dimming handled - knob, panel, or both?

Both. There is a 0-10V knob dimmer and a smart control panel option on the same fixture, so a site can start with manual dimming and move to panel control without changing hardware.

Indoor growing lighting

What input voltage range does it accept?

100-277V, which covers North American 120V and 208-240V supplies as well as European 230V, so one SKU can serve several markets. That range is wider at the bottom than the 110-277V units in this family.

Which certifications are available?

ETL, UL and CE are all offered on this build. Which listing ships depends on the destination market - state it in the enquiry and the quotation will carry the matching one rather than a generic claim.

How heavy is it and what does it need from the ceiling?

15 kg net for a 720W fixture, which is light for the output. Standard hangers on a rated ceiling or truss are sufficient, and the foldable frame means it can be lowered, folded and moved by one person.

Is there a spectrum datasheet for this model?

A full wavelength table is not part of the published specification for this build, so we do not quote nanometre peaks for it. A spectrum drawing comes with the quotation, and the diode mix is confirmed in writing before the order.
