Foldable LED Bar

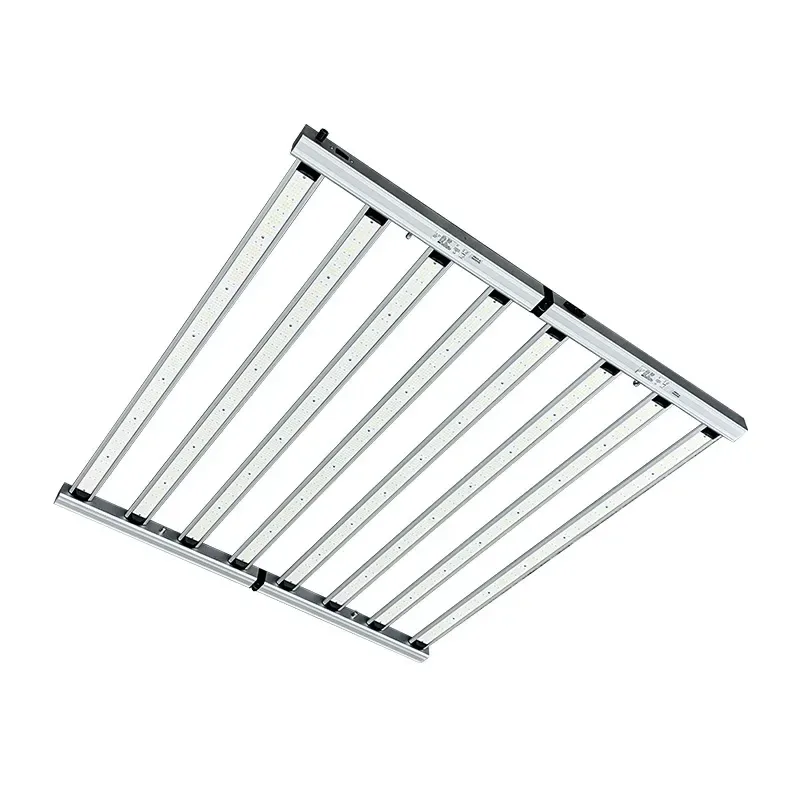

Foldable LED Bar Grow Light Series – 720W / 800W / 1200W

A 720W folding bar offered in 720W, 800W and 1200W builds across 4 × 4 ft, 4 × 6 ft and 4 × 8 ft footprints. It carries 3920 LM281B diodes, declares 5000K and 6500K white with 660 nm red, 730 nm far red and 460 nm blue, and dims by button or over an RJ45 port.

Get a Quote Request a Sample Contact Sales

Overview

Key Features

Footprint-led range: 4 × 4 ft, 4 × 6 ft and 4 × 8 ft
3920 LM281B diodes
Two whites plus 660 nm red, 730 nm far red and 460 nm blue
Button dimming with RJ45 linking
Weight quoted as 8–25 kg depending on bar count

Power	720W/800W/1200W
Input Voltage	110-277V
Spectrum	5000K white + 6500K white + 660nm red + 730nm far-red + 460nm blue
LED Chips	Samsung LM281B
Dimming	Button dimming / RJ45 port
Dimensions	4x4ft / 4x6ft / 4x8ft

Product Overview

Foldable LED Bar Grow Light Series – 720W / 800W / 1200W

This listing is organised by footprint rather than by bar count: 720W covers 4 × 4 ft, 800W covers 4 × 4 ft with a different bar configuration, and 1200W extends to 4 × 6 ft and 4 × 8 ft. Buying from this family means choosing the footprint first and the wattage second.

Diodes are LM281B, 3920 in total, and the declared spectrum uses two whites — 5000K and 6500K — with 660 nm red, 730 nm far red and 460 nm blue. Dimming is by button on the fixture with an RJ45 port for linking, and certification is CE with a 3K temperature rise on an IP54 housing.

Net weight is quoted as a range of 8–25 kg because it tracks model and bar count. Freight and mounting calculations should use the weight for the specific footprint rather than the top of the range; the variants table carries bar count and length for each configuration.

Specifications

Technical Specification

Parameters are extracted from the product's technical data sheet. Final configuration is confirmed per order.

Power	720W/800W/1200W
Input Voltage	110-277V
Spectrum	5000K white + 6500K white + 660nm red + 730nm far-red + 460nm blue
LED Chips	Samsung LM281B
Dimming	Button dimming / RJ45 port
Dimensions	4x4ft / 4x6ft / 4x8ft
Net Weight	8–25 kg (by model and bar count)
IP Rating	IP54
Lifespan	50,000 hours
Certifications	CE (EU)
Housing Material	Aluminum
Luminous Flux	128000 lm
Luminous Efficacy	160 lm/W
Power Factor	0.95
LED Count	3920
Temperature Rise	3K

Available Variants

Model	Power	Bars	Length	Coverage
1200W	1200W	12	1.8m	4x6ft
800W	800W
720W	720W

Photonics

Spectrum & Lighting Performance

Engineered spectrum and output figures for predictable crop response.

Input Voltage

110-277V

Spectrum

5000K white + 6500K white + 660nm red + 730nm far-red + 460nm blue

LED Chips

Samsung LM281B

Dimming

Button dimming / RJ45 port

Applications

Where It Is Used

Rooms planned around standard 4 ft bed widths
Mixed-footprint facilities buying from one family
Retrofit of existing 4 × 4 ft positions

Logistics

Packaging & Shipping Data

Carton and gross-weight information for freight planning.

1200W (1.8M, 12 Bars, 4X6Ft) Package Dimensions	120 x 14 x 96 cm
1200W (1.8M, 12 Bars, 4X6Ft) Package Volume	161280 cm3
800W (1.1M, 8 Bars, 4X4Ft) Package Dimensions	120 x 14 x 59 cm
800W (1.1M, 8 Bars, 4X4Ft) Package Volume	99120 cm3
720W (1.1M, 6 Bars, 4X4Ft) Package Dimensions	120 x 14 x 59 cm
720W (1.1M, 6 Bars, 4X4Ft) Package Volume	99120 cm3

OEM & ODM

Build Your Private-Label Grow Light

Foldable LED Bar Grow Light Series – 720W / 800W / 1200W is available for OEM and private-label programs. Spectrum, wattage, driver, housing, logo and packaging can all be customized. Minimum order quantities depend on the level of customization — tell us your target market and we will propose a configuration and quotation.

Spectrum & wattage tuning

Custom housing & finish

Private-label packaging

Logo & brand printing

FAQ

Frequently Asked Questions

Practical questions about this grow light — specifications, customization, samples and ordering.

Which tent sizes does this fixture map to?

The 720W, 800W and 1200W versions map to 4x4 ft, 4x6 ft and 4x8 ft respectively, which is why the dimensions row on this page is given in feet rather than millimetres. It is a tent-oriented platform, not a room-scale bar.

How is dimming controlled on this model?

Button dimming on the fixture, with an RJ45 port for wired control. There is no app or wireless pairing, so it suits installations where a controller box is preferred over another radio device in the room.

What wavelength mix does it run?

5000K and 6500K white, 660nm red, 730nm far-red and 460nm blue. The two whites give a broad base, 660nm carries flowering, and 460nm blue keeps internode spacing tight through stretch.

Why does a 720W fixture weigh 25 kg?

Because it is a folding bar array rather than a single panel - the frame, hinges and bar housings add mass. The upside is that the 25 kg folds into a flat bundle, which is far easier to move through a doorway than a rigid 4x4 ft panel.

Which diodes are used?

Samsung LM281B. It is a widely available horticultural diode, so a fixture in service for years can still be repaired from common stock rather than a discontinued bin.

Will 720W be enough for a 4x4 ft flower canopy?

That is the pairing the platform is designed around, but the honest answer depends on your target PPFD and hanging height, which we will not guess at. Tell us the crop stage and target intensity and we will tell you whether 720W, 800W or 1200W is the right bar for that footprint.

Indoor growing lighting

Can the 4x6 ft and 4x8 ft versions ship on the same order?

Yes. They share the frame family and connector type, so a mixed order across the three sizes is quoted as one shipment with cartons marked per size.
